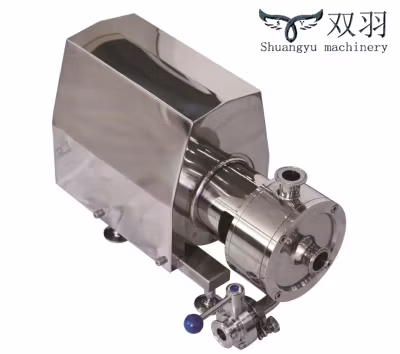

3000L/H Inline Emulsifying Mixer Homogenizing Pump Shear Emulsifier

Basic Info

Model NO.	ILM-3
Mesh Form	Internal Engaged
Tooth Flank	Skew Tooth
Tooth Curve	Cycloid
Power	Electric
Applications	Food Processing
Certification	CE, ISO
Production Type	Continuous
Machine Type	Emulsifier
Stage	1~3 Stage
Flow Rate	3~15t/H
Motor Power	1.5~15kw
Voltage	220~415V
Transport Package	Wooden Case
Specification	SS304, single stage
Trademark	ranking
Origin	Wenzhou, China
HS Code	841370
Production Capacity	50, 000 PCS / Year

Product Description

In line shear mixer emulsifying pump

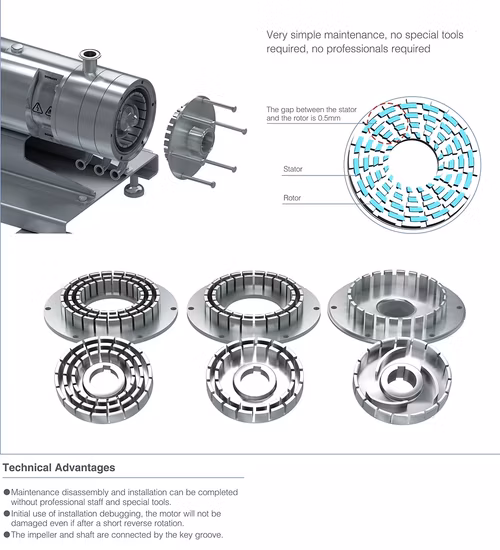

Inline shear mixer equipped with key part of linear cutting stator and rotor, single or three sets of stator-rotor makes single stage inline shear mixer and 3-stage inline mixer. Inline shear mxier can disperse, mix and emulsify various kind of liquid with different viscosity by high shearing power. Both single stage in in line shear and 3-stage in-line shear mixer are widely used in production of food, beverage, fragrance, cosmetic, shampoo, and facial cream.
Working Principle
Inline shear mixer Has similar work theory with high shear batch emulsifier, which the rotor and stator work together to generate strong shearing power during speedy running to realize mixing, smashing and emulsion. Inline mixer could also be fixed on pipeline to do continuous work.

Main structure

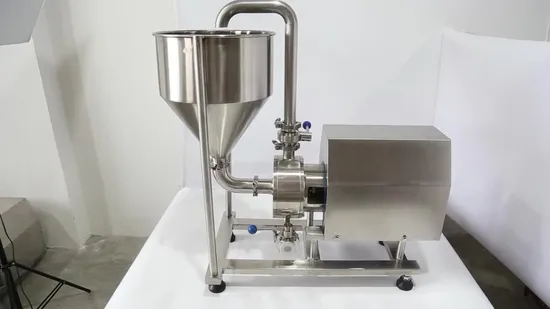

The standard components are famous brand motor, pump chamber, mechanical seal, rotor and stator. Under request, we also offer a higher configured inline shear mixer with cooling pump and water tank. Movable skid, powder hopper and cooling pump are optional.

Main specification2.2kw three stage movable inline shear mixer speification

inline shear mixer motor	power	Kw	2.2
	type	poles	2
	speed	rpm	3600
	voltage	AC	230V 60Hz 3Phase
shear mixer assembly	rotor stator	sets	3
	construction material	SS304(L)
	flow rate	Liter / Hour	0~2000
pipe size	raw material inlet	1 1/2" clamp
	mixture outlet	1" clamp
	drainage port	1/2" thread
accessories	See Mine components below
dimension	L x W x H	850 x 260 x 850 for model
Weight	KG	70
Unit price	FOB Ningbo China

3-stage - Single Stage Inline High Shear Homogenizing Pump
